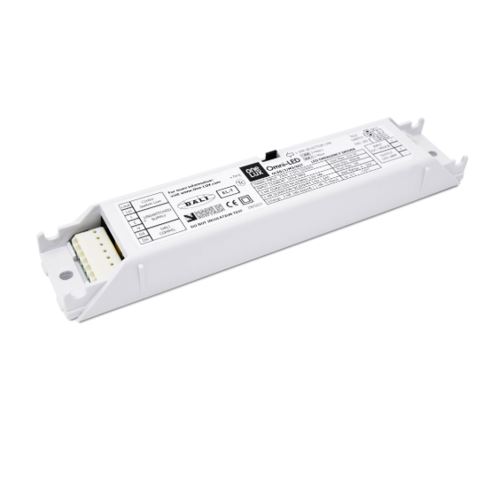

Emergency Lighting Module - One-Lux - Omni-LED - OL55/3/M3
Features > Emergency output power (Typical) : 1.5W (2-cell), 3W (3-cell), 4W (55V 4-cell ), 3.5W (90V 4-cell ) and 3W (200V 4-cell) > 3-pole switching provides full isolation of lamp connections and mains driver’s power supply during emergency operation (Compatible with most driver types up to 2A lamp current) > Universal module with user-selectable 1 or 3 hour autonomy > Constant-current charger with short-circuit protection and polarised battery socket > Zero battery current in standby allows pre-connection for storage > Input for optional manual low-voltage emergency test switch > Additional side fixing points allows mounting in restricted spaces > Operates High-brightness green charge LEDs. (250mm supplied. Other lengths available, please see accessories section for options) > Designed and manufactured in Great Britain > Complies with: EN61347-1, EN61347-2-7, EN61347-2-13, EN55015, EN61000-3-2, EN61547 > Suitable for luminaires conforming to EN60598-2-22 www.one-lux.com 1 Common Technical Data Input Supply Voltage 230V +/- 10% Supply Frequency 50/60 Hz Output Voltage of the Range 3 - 200 Vdc Maximum TC Point 2 & 3 Cell - 80°C/ 4 cell - 75°C Ambient Temperature Range 0°C - 50°C Battery Charge Time 24 Hours Earth Leakage Current <0.5mA IP Rating IP20 Weight 90g Model Number Standard Pack Quantities Weight OL12/2/M3 50 5.0kg OL55/2/M3 50 5.0kg OL55/3/M3 50 5.0kg OL55/4/M3 50 5.0kg OL90/4/M3 50 5.0kg OL200/4/M3 50 5.0kg Accessories A range of batteries and accessories are available, please refer to accessories section. Product specifications may be subject to change without prior notice. V2-Iss 4a Aug 2017 EMERGENCY | ONE-LEDTM OMNI-LEDTM | LED EMERGENCY CONVERSION MODULE Product description Omni-LEDTM is a range of Maintained emergency lighting conversion modules housed in a compact low-profile enclosure and suitable for use in either internal or remote selfcontained applications. Their constant-power driver technology with a SELV isolated output range of 3V – 200VDC will run almost any LED lamp or array (including some GU10 and Linear tubes), so making it easy to produce an emergency version of your existing LED luminaire without the need for separate ‘emergency’ LEDs or connectors. They are available in 2, 3 and 4 cell versions and compatible with both NiCd or NiMH batteries for 1 or 3 hour autonomy. Download 3D model www.one-lux.com 2 Model Number Input Characteristics - Charging Mode Autonomy Setting Circuit Watts* Input Current Inrush Current Power Factor OL12/2/M3/ OL55/2/M3 1 hour 2.8W 0.03A 5A pk 0.45 3 hours 3W 0.03A 5A pk 0.45 OL55/3/M3 1 hour 2.8W 0.03A 5A pk 0.44 3 hours 4.2W 0.04A 5A pk 0.47 OL55/4/M3, OL90/4/M3, OL200/4/M3 1 hour 3.4W 0.04A 5A pk 0.45 3 hours 4.8W 0.05A 5A pk 0.45 TECHNICAL INFORMATION * This figure may be used for LENI ‘Parastic Power’ calculations. Model Number Battery & Emergency Output Characteristics Autonomy Setting Battery Type Number of Battery Cells Battery Volts (Range) Rated Capacity DDP Voltage Charge Current (Constant) Discharge Current Nominal/ Range LED Voltage Range Typical Output Power ** Uout Max (open Circuit) OL12/2/M3 1 hour NiCd/ NiMH 2 2 - 2.8V 1.6Ah 1.8V (min) 75-95mA 1.05A /(0.8 - 1.2A) 3 - 12V 1.5W 50V 3 hours 2 2 - 2.8V 4Ah 1.8V (min) 140-260mA 1.05A /(0.8 - 1.2A) 3 - 12V 1.5W 50V OL55/2/M3 1 hour 2 2 - 2.8V 1.6Ah 1.8V (min) 75-95mA 1.05A /(0.8 - 1.2A) 9 - 55V 1.5W 80V 3 hours 2 2 - 2.8V 4Ah 1.8V (min) 140-260mA 1.05A /(0.8 - 1.2A) 9 - 55V 1.5W 80V OL55/3/M3 1 hour 3 3 - 4.2V 1.6Ah 2.5V (min) 75-95mA 1.05A /(0.8 - 1.2A) 9 - 55V 3W 80V 3 hours 3 3 - 4.2V 4Ah 2.5V (min) 140-260mA 1.05A /(0.8 - 1.2A) 9 - 55V 3W 80V OL55/4/M3 1 hour 4 4 - 5.6V 1.6Ah 3.5V (min) 75-95mA 1.05A /(0.8 - 1.2A) 9 - 55V 4W 80V 3 hours 4 4 - 5.6V 4Ah 3.5V (min) 140-260mA 1.05A /(0.8 - 1.2A) 9 - 55V 4W 80V OL90/4/M3 1 hour 4 4 - 5.6V 1.6Ah 3.5V (min) 75-95mA 1.05A /(0.8 - 1.2A) 55 - 90V 3.5W 100V 3 hours 4 4 - 5.6V 4Ah 3.5V (min) 140-260mA 1.05A /(0.8 - 1.2A) 55 - 90V 3.5W 100V OL200/4/M3 1 hour 4 4 - 5.6V 1.6Ah 3.5V (min) 75-95mA 1.05A /(0.8 - 1.2A) 90 - 200V 3W 205V 3 hours 4 4 - 5.6V 4Ah 3.5V (min) 140-260mA 1.05A /(0.8 - 1.2A) 90 - 200V 3W 205V EMERGENCY | ONE-LEDTM OMNI-LEDTM | LED EMERGENCY CONVERSION MODULE ** See graphs on pages 3 and 4 for output characteristics. www.one-lux.com 3 TECHNICAL INFORMATION LED lamp output - Shaded area indicates typical forward voltage (Vf) vs forward current (If) expected throughout discharge duration. 4W - OL55/4/x 0 100 200 300 400 500 600 3 6 811 14 LED current [mA] LED voltage [V] 1.5W - OL12/2/x 3W - OL55/3/x 0 50 100 150 200 250 300 350 400 450 500 550 600 9 11 14 17 19 22 25 27 30 33 35 38 41 43 46 48 51 54 LED current [mA] LED voltage [V] 0 50 100 150 200 250 300 350 400 450 500 550 600 9 11 14 17 19 22 25 27 30 33 35 38 41 43 46 48 51 54 LED current [mA] LED voltage [V] EMERGENCY | ONE-LEDTM OMNI-LEDTM | LED EMERGENCY CONVERSION MODULE 1.5W - OL55/2/x www.one-lux.com 4 TECHNICAL INFORMATION EMERGENCY | ONE-LEDTM OMNI-LEDTM | LED EMERGENCY CONVERSION MODULE LED lamp output - Shaded area indicates typical forward voltage (Vf) vs forward current (If) expected throughout discharge duration. 0 10 20 30 40 50 60 70 80 55 60 65 70 75 80 85 90 LED current [mA] LED voltage [V] 3.5W - OL90/4/x 0 10 20 30 40 50 60 70 80 90 105 120 135 150 165 180 190 200 LED current [mA] LED voltage [V] 3.0W - OL200/4/x www.one-lux.com 5 Model Number NiCd Batteries NiMH Batteries Autonomy Setting NCD24SS NCD24BS NCD34SS NCD34BS NCD44SS NCD44BS NCD216SS NCD316SS NCD416SS NMH24SS NMH34SS NMH44SS OL12/2/M3, OL55/2/M3 1 hour 4 3 hours 4 4 4 OL55/3/M3 1 hour 4 3 hours 4 4 4 OL55/4/M3, OL90/4/M3, OL200/4/M3 1 hour 4 3 hours 4 4 4 ACCESSORY ASSIGNMENT Model Number NiCd Batteries NiMH Batteries NCD24SS NCD34SS NCD44SS NCD216SS NCD316SS NCD416SS NMH24SS NMH34SS NMH44SS E 2 2 2 E/Slotted 2 2 2 E/18700 2 2 2 E/ Sub C 2 2 2 Applicable battery packs to OMNI-LED models Applicable number of end caps to relevant battery models EMERGENCY | ONE-LEDTM OMNI-LEDTM | LED EMERGENCY CONVERSION MODULE www.one-lux.com 6 ACCESSORIES | NICKEL CADMIUM (NiCd) BATTERIES Product description > High temperature Nickel Cadmium batteries for Emergency Lighting use > Suitable for use with all One-LUX products > 1-year warranty Properties > Rated for continuous operation at 55°C and meets the 4 year design life as per Annex A of EN60598-2-22 > Complies with IEC61951-1 > Supplied with suitable connectors > Available in custom configurations > 4Ah ‘D’ size cells > Other capacities available > Refer to battery datasheet for further information Common Technical Data Absolute Maximum Temperature 70˚C Maximum Continuous Temperature 55˚C Minimum Ambient Temperature 5˚C Charge Requirements C/20 for 24 hours Constant Current (CC) Storage 0-25˚C for 12 months Disposal at registered treatment facility only Table of Dimensions Dimensions NCD24SS NCD24BS NCD34SS NCD34BS NCD44SS NCD44BS NCD216SS NCD316SS NCD416SS Length (L) 116mm 68mm 175mm 102mm 234mm 136mm 86mm 131mm 175mm Width (W) 34mm 63mm 34mm 63mm 34mm 63mm 23mm 23mm 23mm Height (H) 34mm 36mm 34mm 36mm 34mm 36mm 23mm 23mm 23mm Fixing (l) n/a 32mm 64mm Fixing (w) 40mm 40mm 40mm IEC Cell Size ‘D’ ‘Sub-C’ (SC/Cs) NiCd Cable Assemblies Connector Type Wire Length Connector Dimensions CAS031 required with packs (BS) (Sold separately) Mini JST plug to Amp ‘mate-n-lok’ (male) 250mm N/A N/A CAS020 required with sticks (SS) (Sold separately) Mini JST plug to Red & Black wires with sockets 500mm 4.8mm x 0.8mm 6.3mm x 0.8mm CAS012 - link wire (Sold separately) White wire (female/female) 100mm 6.3mm x 0.8mm (positive) 4.8mm x 0.8mm (negative) NiCd Batteries - Ordering Information Product Code NCD24SS NCD34SS NCD34BS NCD44SS NCD44BS NCD216SS NCD316SS NCD416SS Box Quantity 40 30 30 20 22 140 60 60 Weight 11kg 12kg 13kg 10.8kg 12kg 14.5kg 10kg 12kg Positive Negative Length (L) Height (H) Length (L) Fixing (l) Fixing (w) Height (H) Width (W) EMERGENCY | ONE-LEDTM OMNI-LEDTM | LED EMERGENCY CONVERSION MODULE www.one-lux.com 7 ACCESSORIES | NICKEL METAL HYDRIDE (NiMH) BATTERIES Product description > High temperature Nickel Metal Hydride batteries for emergency lighting use > Suitable for use with all One-LUX products > 1-year warranty Properties > Rated for continuous operation at 50°C and meets the 4 year design life as per Annex A of EN60598-2-22 > Complies with IEC61951-2 > Supplied with suitable connectors > Available in custom configurations > 4Ah ‘18700’ size cells > Other capacities available > Refer to battery data sheet for further information Common Technical Data Absolute Maximum Temperature 70˚C Maximum Continuous Temperature 50˚C Minimum Ambient Temperature 5˚C Charge Requirements C/20 for 24 hours Constant Current (CC) Storage 0-25˚C for 6 months Disposal at registered treatment facility only Table of Dimensions Dimensions NMH24SS NMH34SS NMH44SS Length (L) 140.5mm 214.5mm 284mm Diameter (D) 20mm 20mm 20mm IEC Cell Size ‘18700’ NiMH Cable Assemblies Connector Type Wire Length Connector Dimensions CAS024/JST - wire set (Sold separately) Mini JST plug to Red & Black wires with spade & socket 700mm Red 4mm (socket) Black 3.5mm (spade) CAS070 - link wire (Sold separately) Black wire (male/female) 300mm 3.5mm & 4mm (spade & socket) NiMH Batteries - Ordering Information Product Code NMH24SS NMH34SS NMH44SS Box Quantity 50 45 54 Weight 7kg 11kg 14.5kg Length (L) Diameter (D) Nickel Metal Hydride (Ni-MH) EMERGENCY | ONE-LEDTM OMNI-LEDTM | LED EMERGENCY CONVERSION MODULE www.one-lux.com 8 ACCESSORIES Product description > End caps suitable for use with ‘stick’ D size batteries > End cap suitable for use with ‘stick’ Sub-C batteries > End cap suitable for use with ‘stick’ 18700 Nickel Metal Hydride batteries Properties > Provides a convenient and secure mounting option for cylindrical batteries > Moulded in UL94-V0 rated plastic > ‘E’ version offers slide together feature to produce secure side-by side configuration > Link wires available separately > Slotted for tag connection or outlet for pre-soldered connections BATTERY END CAPS Product description > High intensity 30° beam green LED > Available with 250mm, 500mm and 750mm length leads > Used in conjunction with emergency control gear to indicate that the battery is charging Properties > Narrow beam, high intensity – ideal for use behind diffusers even with the main lamp on > Suitable for push wire connectors > Suitable for standard T1 ¾ (5mm) LED mounts (not supplied) > 250mm LED indicator supplied. Other sizes are available to be ordered separately. INDICATOR LEDs Product description > Custom assemblies manufactured to your specification Properties > Easy fit solutions for simplified manufacture / installation > Full technical Support during design (Mechanical Drawings, Material sourcing, compliance assistance: thermal management, EMC, etc.) > Produced in an ISO9001 and ISO14001 manufacturing environment CUSTOM ASSEMBLIES NiCd Batteries - Ordering Information Product Code E E/Slotted E/18700 E/SubC Fixing Centres when fitted Battery Length (L) + 20mm Battery Length (L) + 17mm Battery Length (L) + 16mm Battery Length (L) + 19mm Maximum Length when fitted Battery Length (L) + 37mm Battery Length (L) + 34mm Battery Length (L) + 23mm Battery Length (L) + 40mm LED Indicator - Technical Data Forward Voltage (Vf) 3.2V nominal Forward Current (If) 30mA maximum Dominant Wavelength 535nm Grey Wire LED Cathode (-) White wire LED Annode (+) LED Assembly - Ordering Information Product Code CAS106 CAS106/500 CAS106/750 Lead Length (l) 250mm 500mm 750mm EMERGENCY | ONE-LEDTM OMNI-LEDTM | LED EMERGENCY CONVERSION MODULE www.one-lux.com 9 Disclaimers This product and its associated accessory products have been manufactured and designed to comply with the requirements of EN60598-2-22 in addition to the standards detailed on page 1 of this document. Operation beyond the parameters specified in this document and the associated standards may result in reduced performance and ultimate premature failure, with the warranty made void. It is the users responsibility to ensure full compatibility of the Omni-LED product for the intended application and for compliance of the emergency conversion to relevant Standards. The user should be aware of the environment to which the luminaire and these components are used and follow the luminaire manufacturer’s specifications. The Omni-LED modules are not intended for use in high-risk task area luminaires. Installation should be in line with the following guides. Please contact our Technical department if you are in any doubt. Precautions This product should be installed as per the following guidelines, electric shock or damage to the product may result if incorrectly installed. The luminaire should be installed by a qualified and competent electrician. If the luminaire is to be mounted in an external location, consider the battery as temperatures below 0°C may be frequent in cold months. In this case, the design life of 4 years will be compromised and more frequent battery replacements may be needed. Likewise, if the luminaire is situated in a hot environment where the temperature is maintained at 25°C or above, or sited next to large panes of glass in which case it may be exposed to thermal magnification. It is recommended that IP65 luminaires are avoided for use in internal applications as undue thermal stress may result. Installation notes Wire Preparation: maximum strip length 10mm (recommended 6mm) Min/max Conductor sizes: 0.5 - 1.5 mm2 . Best effort should be made to keep the Omni-LED and battery away from direct sources of heat, i.e. mains LED drivers and LED lamps. Avoid obstructing airflow around the sides of the Omni-LED and other electronic products. Allow a clearance of 10mm or more wherever possible. Ensure battery wiring is correct before connection as reverse polarity will cause permanent damabe to the module. Lamp Connections should be kept as short as possible and under no circumstances exceed 1m for self-contained luminaires. The Omni-LED product should be secured using both fixing points and the use of M4x 6mm screws are recommended for most applications. Test Switch inputs - Emergency Test Function (Optional) This product offers the facility to perform a function test for the duration which the switch is held. A non-latching push-to-make switch should be used as shown in the wiring diagram. EMC considerations: Mains input connections should be as far from the lamp leads as possible and no ideally less than 10cm. Mains input wires should be as short as possible and run direct from input terminations to the Omni-LED product; they should not run alongside the case. Other EMC tips: > Keep the lamp wires raised off any earthed metalwork > Twist mains leads together when ‘looping’ or ‘through wiring’ The switched and un-switched lives may be joined together for continuous operation (un-switched) applications. The unit provides SELV reinforced insulation between the mains supply and battery charging circuit and employs self-resetting protection against shortcircuit of battery terminals. Normal charging will resume automatically once a fault is removed. The mains supply should always be disconnected when servicing the luminaire. If other devices are connected to the un-switched supply, please be aware that to maintain compliance with EN60598-2-22 that in event of its failure it will not affect other devices on the same circuit. In this case we recommend the use of separate fused terminal blocks to each device. Internal fuses used within Omni-LED product are not user serviceable. The Omni-LED modules are not suitable for use with battery supplies having ‘trickle’ or ‘intemittent’ re-charging circuits. INSTALLATION Installation particulars for end user Commissioning: Once the luminaire has been installed in line with the manufacturer’s recommendations, the battery should be allowed to charge for a minimum period of 24 hours before testing for its rated duration. If it is anticipated that the un-switched supply may be interrupted, it is imperative that the battery is left disconnected and commissioning is delayed until the supply is stable. If the luminaire has been stored for a number of months, it may be necessary to repeat the charge/discharge process several times to re-condition the battery. After successful commissioning, the battery should be marked with the date of commission. Routine test and inspection should be performed in accordance with EN50172 or otherwise local legislation. Short discharge periods of around 5 – 10 minutes each month for the purposes of inspection will not adversely affect One-LUX batteries and should be considered as a maintenance exercise for the battery. Regular full discharge cycles will adversely affect the design life of the battery. EMERGENCY | ONE-LEDTM OMNI-LEDTM | LED EMERGENCY CONVERSION MODULE Autonomy Selection Information Emergency Duration Jumper Setting 3 Hours (Default Setting) 1 Hour (Remove plastic jumper) Omni-LEDTM modules are supplied with a small plastic selector fitted, which denotes 3 hour operation as standard. If 1 hour emergency operation is required, the selector should be removed. NiCD or NiMH batteries other than those supplied by One-LUX may be used with the Omni-LED modules, but in all cases, refer to the ‘Battery & Emergency Output Characteristics’ table on page 2 for full specification & requirments. Warning! Permanent battery damage can occur if the 3 hour setting is used with batteries of less than 4Ah capacity. www.one-lux.com 10 INSTALLATION EMERGENCY | ONE-LEDTM OMNI-LEDTM | LED EMERGENCY CONVERSION MODULE Neutral Unswitched Live Non-Maintained Charge Indicator +LED Module - - + Battery + Test switch Maintained Neutral Unswitched Live +LED Module - Test switch - + Switched Live Mains LED Driver L N E - + Battery + Charge Indicator
Specification
Dimensions
