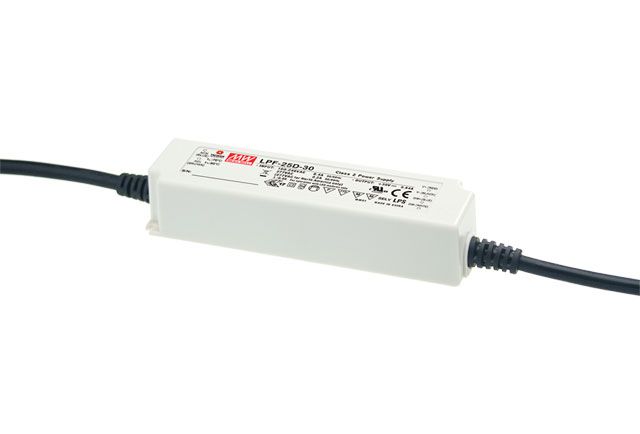

The Lamp Company - LPF-25D-12 LED Driver 25W

LED Driver 25W

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)Fully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input (up to 305VAC)  / Full RangeBuilt-in active PFC functionFully isolated plastic caseIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 25 Output Voltage 12V Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment N/A Dimensions 148 x 40 x 30 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~305VAC; 127~431VDC Safety Standards Design refer to UL8750 ENEC EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C (refer to output derating curve) PDF Datasheet LPF-25D-spec_17.pdf

Specification

Dimensions
