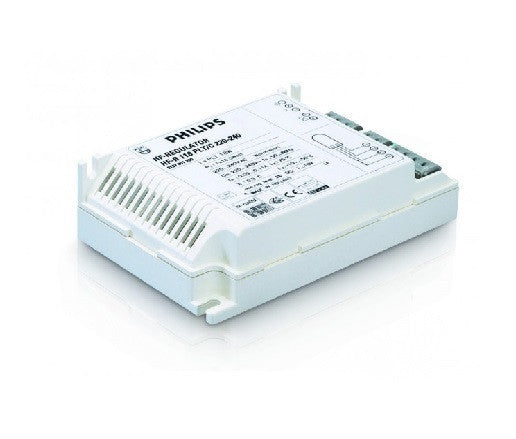

Philips HF-R 218 PL-T/C Philips HF-R Ballasts Philips - Easy Control Gear
Philips

HF-R 218 PL-T/C EII 220-240V 50/60Hz

Order Code: HFR218PLCT-PH

Stock Level: Delivery in 3-5 Days

$161.00 - $161.00
$161.00
$177.00
$177.00 - $177.00
$177.00

Got a question about this product? Get in Touch

Having trouble finding what you're looking for?

We can source most electrical products.
Contact us, we're here to help.

This Philips HF-R 218 PL- T/C dimmable ballast runs a 2 x 18w PL-C or2 x 18w PL-T. This ballast's lamp power can be regulated from 1% to 100%, automatic stop start, automatic restart after lamp replacement, up to 75% reduction in energy consumption and quick programme flicker free start.The Philips HD-f ballasts are commonly used in offices. These units are for use with installations with emergency back up.

Specifications

General information
Application Code
EII
Type Version
mk3
Lamp Type
PL-T/C
Number of Lamps
2 piece/unit
Number of Products on MCB (16A Type B) (Nom)
28
Automatic Restart
Yes
Operating and electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Max)
100 kHz
Operating Frequency (Min)
40 kHz
Ignition Method
Programmed Start
Crestfactor (Max)
1.7
Power Factor 100% Load (Nom)
0.95
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Earth Leakage Current (Max)
0.5 mA
Inrush Current Width
0.35 ms
Constant Wattage Deviation
-2%/+2%
Ballast Factor (Nom)
1.0
Inrush Current Peak (Max)
28 A
Efficiency at full load [%]
87.26 %
Wiring
Connector Type Input Terminals
Insert
Cable Capacity Output Wires Mutual (Nom)
30 pF
Connector Type Output Terminals
Insert
Connector Type Control Input Terminals
Insert
Wire Striplength
7.5-8.5 mm
Dual Fixture Master/Slave
Not applicable  [ Master/Slave oper. not applicable]
Control Input Terminal Cross Section
0.50-1.50 mm²
Input Terminal Cross Section
0.50-1.50 mm²
Output Terminal Cross Section
0.50-1.50 mm²
Cable Capacity Output Wires to Earth (Nom)
75 pF
System characteristics
Rated Ballast-Lamp Power
18 W

Temperature
T-Ambient (Max)
50 °C
T-Ambient (Min)
-20 °C
T-Storage (Max)
80 °C
T-Storage (Min)
-25 °C
T-Case Lifetime (Nom)
65 °C
T-Case Maximum (Max)
75 °C
Stable Lamp Operation Temperature
Not Specified
Controls and dimming
Control Interface
1-10V
Regulating Level Power
1%-100%
Control Input Protection
Yes (Basic insulation)
Mechanical and housing
Housing
S 123x79x33

Emergency operation
Battery Voltage Lamp Ignition
198-254 V
Battery Voltage Lamp Operation
176-254
Approval and application
Energy Efficiency Index
A1 BAT
IP Classification
IP 20  [ Ingress Protection 20]
EMI 9 kHz ... 30 MHz
EN55015
EMI 30 MHz ... 1000 MHz
EN55022 level B
Safety Standard
IEC 61347-2-3
Performance Standard
IEC 60929
Quality Standard
ISO 9000:2000
Environmental Standard
ISO 14001
Harmonic Current Emission Standard
IEC 61000-3-2
EMC Immunity Standard
IEC 61547
Vibration Standard
IEC68-2-6 F c
Bumps Standard
IEC 68-2-29 Eb
Humidity Standard
EN 61347-2-3 clause 11
Approval Marks

CE marking

ENEC certificate

VDE-EMV certificate
Temperature Marking
Not specified
Emergency Standard
IEC 60598-2-22
Hum And Noise Level
Inaudible
Product data
Full product code
871829117698500
Order product name
HF-R 218 PL-T/C EII 220-240V 50/60Hz
EAN/UPC - Product
8718291176985
Order code
913700680166
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
12
Material Nr. (12NC)
913700680166
Net Weight (Piece)
0.230 kg

Installation diagrams

HF-R 218 PL-T/C EII 220-240V 50/60Hz
HF-R 218 PL-T/C EII 220-240V 50/60Hz
HF-R 218 PL-T/C EII 220-240V 50/60Hz
HF-R 218 PL-T/C EII 220-

Specification


Dimensions
