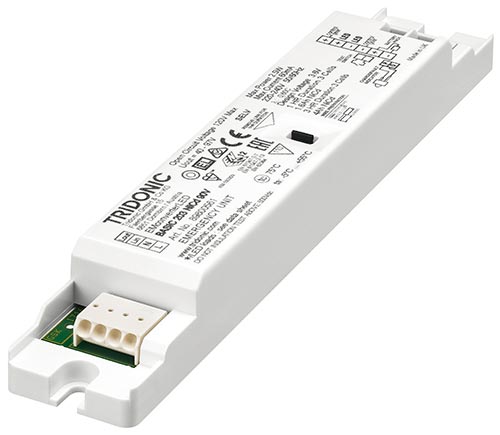

EM converterLED BASIC NiCd/NiMH 50 V

BASIC version

•
•

  Note: Supply of control gear with duration link in 3 hours position. Remove duration link for duration of 1 h. Duration link must be set before battery and mains connection.

Product description

• Emergency lighting LED Driver for manual testing
• For self-contained emergency lighting
• For LED modules with a forward voltage of 10 – 54 V
• SELV for output voltage < 60 V DC
• Low profile casing (21 x 30 mm cross-section)
• For luminaire installation
• Nominal lifetime up to 100,000 h
• 5 years guarantee

Properties

• Non maintained operation
• 1 or 3 h rated duration
• Operating time selectable with plug (duration link)
• Compatible with all dimmable and non-dimmable constant current LED Driver (see data sheet, LED Driver compatibility)
• 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED Driver
• Automatic shutdown of output if LED load is out of range
• Constant power output
• Maximum light output for all LED modules
• Electronic charge system
• Deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery

Batteries

• High-temperature cells
• NiCd or NiMH batteries
• D, Cs or LA cells
• 4 year design life
• 1 year guarantee
• For battery compatibility refer to data sheet

Specification

Dimensions
