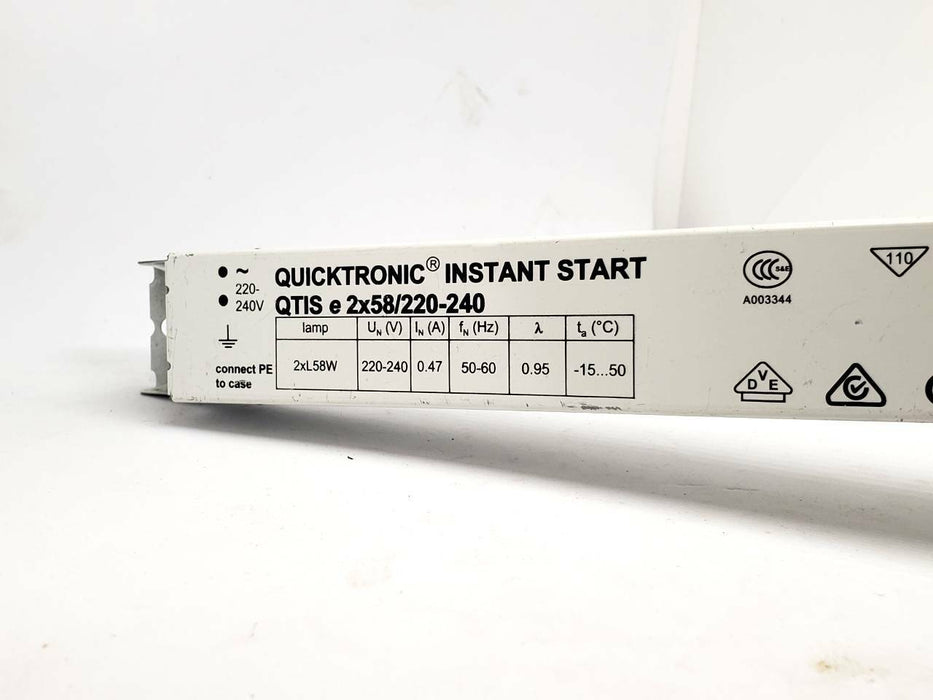

QTIS E 2x58/220-240 2X58w T8 Ballast

2 x58w T8 Ballast - QTISE258 - 4050300940618 - Osram

Applications Suitable f. fixtures with prot. class class I Dimmable No Certificates & Standards Approval marks - approval VDE EEI - Energy Label A3 Standards acc. to EN 61347-2-3 | acc. to EN 55015:2006 + A1:2007 | acc. to EN 61000-3-2 | acc. to EN 61547 Type of protection IP20 General Description Design / version ECG standard Logistical Data Product weight 317.160 g Relative humidity 5...85 % 1) Temperature range at storage -40...85 °C Technical - Electrical Data Inrush current 48 A Nominal voltage 220-240 V Mains frequency 50-60 Hz DC voltage 198...264 V 2) Operating frequency 45...50 kHz Max. no. of ECGs on circuit breaker 10 A 5 Max. no. of ECGs on circuit breaker 16 A 8 TH full width at half maximum 260 µs Technical - Geometries Length 360.00 mm Width 30.00 mm Height 30.00 mm Mounting hole spacing, length 350 mm Technical - Temperatures Ambient temperature range -15...+50 °C Operating temperature 70 °C Max. housing temperature in case of faul 110 °C Packaging units Product code Packaging type and content Dimensions in h x w x l Gross weight Volume 4050300940618 Unpacked contains 1 Piece 38,000 mm x 31,000 mm x 346,000 mm 317,160 g (0,000 g) 0,513 Cubic

Specification

Dimensions
