Stock Level: 12 In Stock For Instant Dispatch

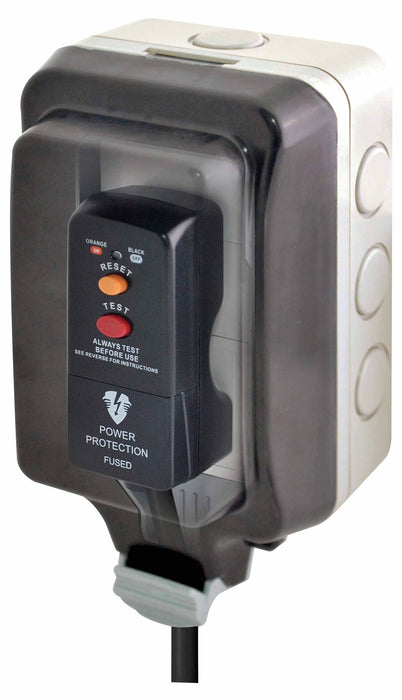

• Outdoor, all weather, waterproof, safe unswitched electrical plug socket with a large enclosure
• Ideal for use with large plugs, transformers & RCD adaptors
• IP66 rated with plug in use
• Stylish modern profile
• Durable, unique 'stay open' cover with easy open lid catch that provides a protective seal
• Adjustable socket position - top, middle, bottom.
• See through, clear, rain proof cover allows visible indication of power
• 13A socket manufactured to BS 1363-2
• Colour coded terminals with backed out captive screws for easy installation
• 2 Earth terminals in socket and 1 Earth terminal in mounting box
• All cable entries in the 4 sides have removable blanking caps.
Please note: RCD not included
This large housing is designed to take an RCD type plug of max dimensions 110mm length x 60mm width x 48mm depth
|Standard(s)||BS 1363 Part 2|
|Rating||13 Amp 250V|
|Terminal Capacity||3 x 2.5mm² 3 x 4mm² 2 x 6.0mm²|
|IP Rating||IP66 with plug in use|
|Size||111mm x 264mm x 80mm|
|Number of cable entries||5 x 20mm. 1 in each of 3 sides and 2 in the remaining side
1 drill out entry 20/25mm in rear face
